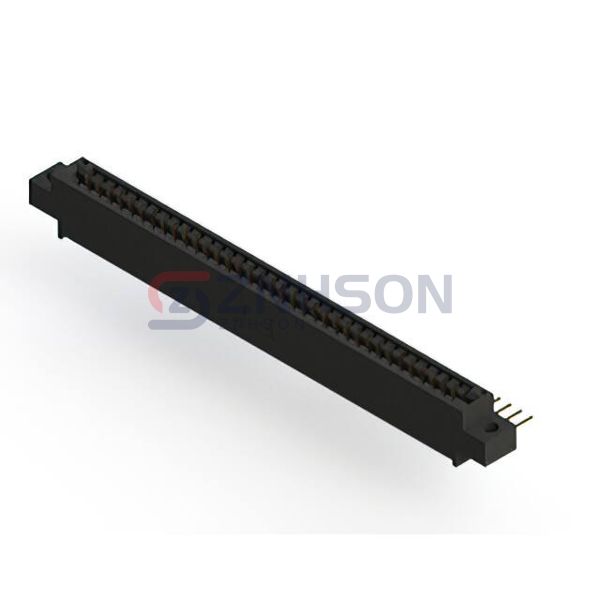

396-036-559-604
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$13.19
Available to order
Reference Price (USD)
1+
$13.18880
500+
$13.056912
1000+
$12.925024
1500+
$12.793136
2000+
$12.661248
2500+
$12.52936
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the versatility of EDAC Inc.'s 396-036-559-604 Card Edge Connectors - Edgeboard Connectors. These connectors are designed to facilitate easy and reliable PCB interconnections in compact spaces. Featuring a durable housing and multiple contact options, the 396-036-559-604 is suitable for use in computing hardware, networking equipment, and test & measurement instruments. Whether you're designing a new system or upgrading an existing one, these connectors provide the flexibility and performance you need.
Specifications
- Product Status: Active
- Card Type: Non Specified - Single Edge
- Gender: Female
- Number of Positions/Bay/Row: 36
- Number of Positions: 36
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 1
- Pitch: 0.125" (3.18mm)
- Read Out: Single
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder, Wire Wrap
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
