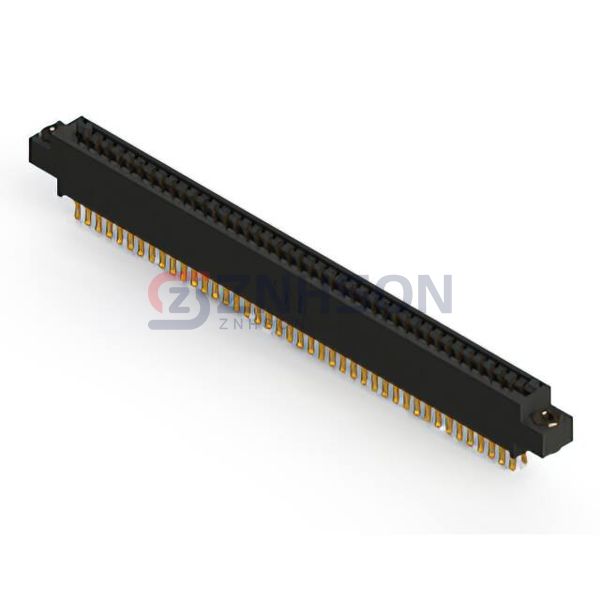

396-084-555-803
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$17.16
Available to order
Reference Price (USD)
1+
$17.16120
500+
$16.989588
1000+
$16.817976
1500+
$16.646364
2000+
$16.474752
2500+
$16.30314
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-084-555-803 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 42
- Number of Positions: 84
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder Eyelet(s)
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
333-038-560-802
EDAC Inc.
387-022-523-807
EDAC Inc.
307-037-405-108
EDAC Inc.
345-009-523-688
EDAC Inc.
337-084-524-808
EDAC Inc.
833-029-559-602
EDAC Inc.
895-063-524-604
EDAC Inc.
346-047-558-678
EDAC Inc.

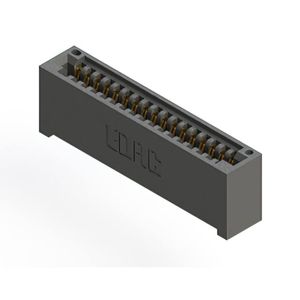

395-017-521-101
