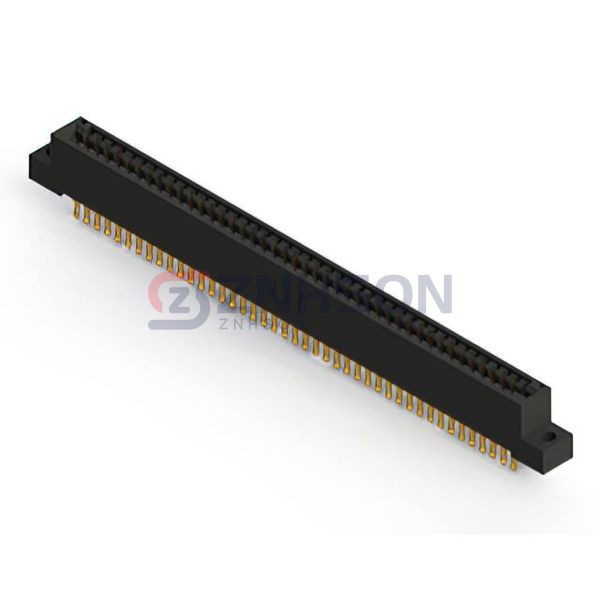

396-086-555-204
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.125
$15.41
Available to order
Reference Price (USD)
1+
$15.41280
500+
$15.258672
1000+
$15.104544
1500+
$14.950416
2000+
$14.796288
2500+
$14.64216
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-086-555-204 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 43
- Number of Positions: 86
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder Eyelet(s)
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
