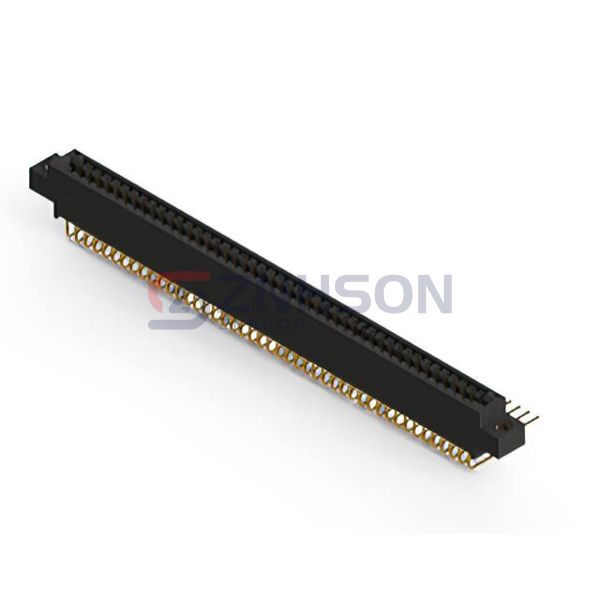

396-090-559-808
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 90POS 0.125
$16.82
Available to order
Reference Price (USD)
1+
$16.82240
500+
$16.654176
1000+
$16.485952
1500+
$16.317728
2000+
$16.149504
2500+
$15.98128
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-090-559-808 by EDAC Inc. sets the standard for Card Edge Connectors - Edgeboard Connectors with its innovative design and exceptional reliability. These connectors are optimized for high-density applications, offering a perfect balance between size and performance. Commonly used in server backplanes, data storage systems, and military communications, the 396-090-559-808 delivers unmatched connectivity solutions for critical operations.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 45
- Number of Positions: 90
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder, Wire Wrap
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
846-044-500-604
EDAC Inc.
337-040-558-802
EDAC Inc.
895-064-520-608
EDAC Inc.
833-014-558-608
EDAC Inc.
333-023-542-107
EDAC Inc.
345-062-524-178
EDAC Inc.
895-030-558-804
EDAC Inc.
395-082-525-201
EDAC Inc.

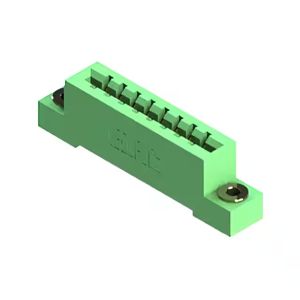

837-008-524-103
