4-103777-0-15
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 30POS 2.54MM
$1.61
Available to order
Reference Price (USD)
1+
$1.49000
10+
$1.35400
25+
$1.27080
50+
$1.21560
100+
$1.16030
250+
$1.04976
500+
$0.96690
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 4-103777-0-15 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.410" (10.41mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-150-02-L-DV-A-P
Mill-Max Manufacturing Corp.
852-40-066-10-001000
3M
929834-02-07
Samtec Inc.
TSM-102-01-TM-SH
Sullins Connector Solutions
PREC002SABN-RC
TE Connectivity AMP Connectors
1376350-9

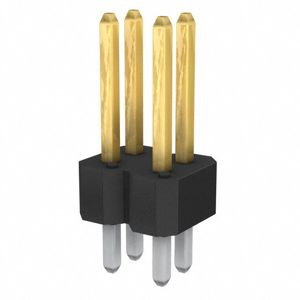

Amphenol ICC (FCI)
77313-824-04LF

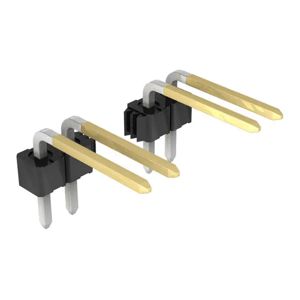

Molex
0022286363

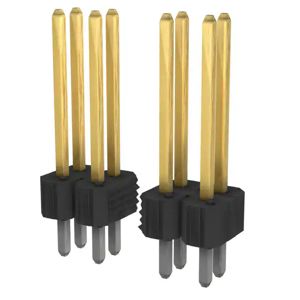

Amphenol ICC (FCI)
