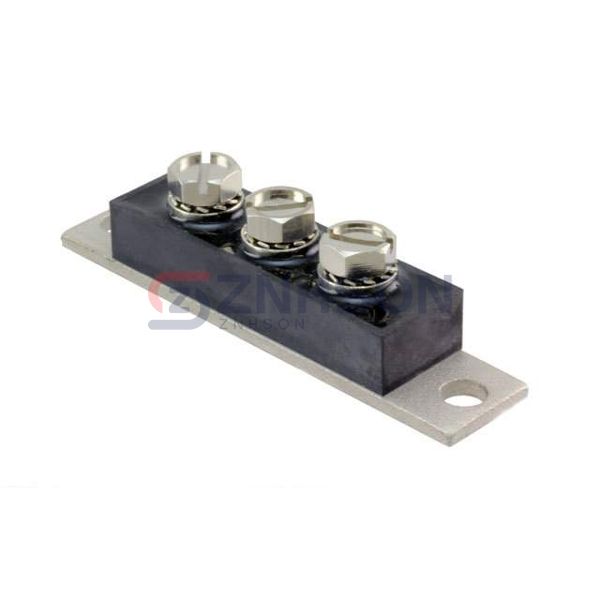

409DMQ135
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 135V 200A PRM4
$69.70
Available to order
Reference Price (USD)
198+
$72.83520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the 409DMQ135 by SMC Diode Solutions represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With SMC Diode Solutions's patented junction design, the 409DMQ135 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 135 V
- Current - Average Rectified (Io) (per Diode): 200A
- Voltage - Forward (Vf) (Max) @ If: 1.03 V @ 200 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 6 mA @ 135 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: PRM4
- Supplier Device Package: PRM4 (Isolated)
