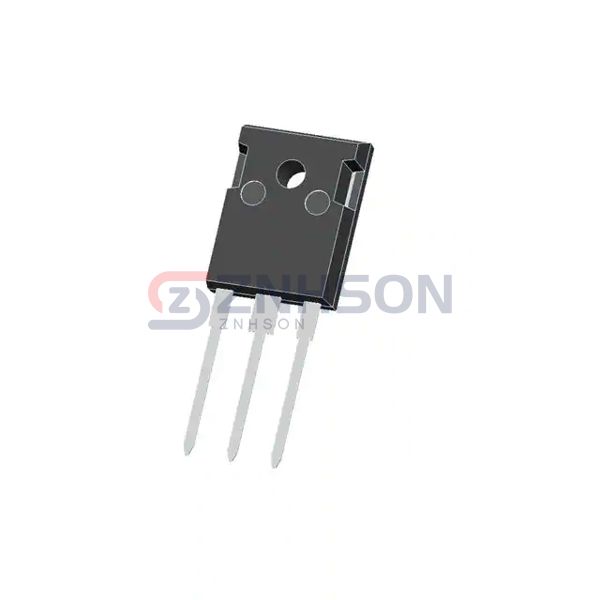

40CPQ045
SMC Diode Solutions
SMC Diode Solutions
40A, 45V, TO-247AD, SCHOTTKY REC
$2.66
Available to order
Reference Price (USD)
1+
$2.66000
500+
$2.6334
1000+
$2.6068
1500+
$2.5802
2000+
$2.5536
2500+
$2.527
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 40CPQ045 from SMC Diode Solutions is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose SMC Diode Solutions's 40CPQ045 for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io) (per Diode): 20A
- Voltage - Forward (Vf) (Max) @ If: 490 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 4 mA @ 45 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
