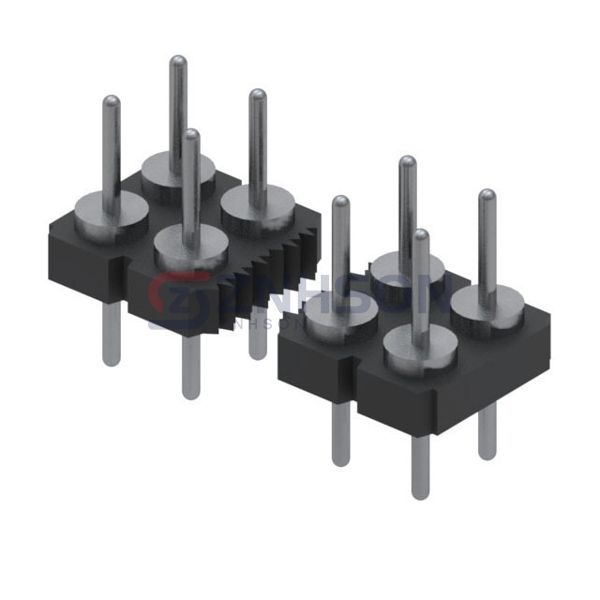

435-40-226-00-160000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER VERT 26POS 2.54MM
$5.91
Available to order
Reference Price (USD)
1+
$4.53000
10+
$4.35100
25+
$3.98880
50+
$3.80740
100+
$3.62610
250+
$3.17288
500+
$3.08222
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 435-40-226-00-160000 by Mill-Max Manufacturing Corp. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Mill-Max Manufacturing Corp. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: 0.104" (2.64mm)
- Overall Contact Length: 0.299" (7.60mm)
- Insulation Height: 0.050" (1.27mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0022057085
Preci-Dip
451-80-222-00-016101
TE Connectivity AMP Connectors
640584-3
Harwin Inc.
M22-2510805
Samtec Inc.
MTSW-103-07-T-D-130-RA
Samtec Inc.
MMT-108-02-L-DH-P-TR
TE Connectivity AMP Connectors
1-1971818-2
Hirose Electric Co Ltd
DF13-10P-1.25H(75)
Samtec Inc.

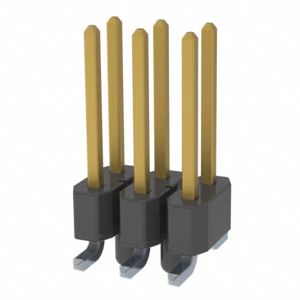

TSM-103-02-S-DV-A-P-TR
