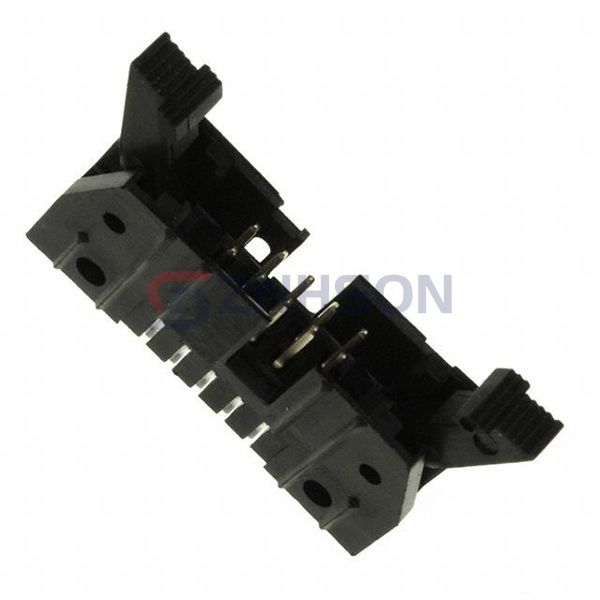

499910-1

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 10
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Latch Lock/Eject Hooks, Short
• Contact Length - Mating: 0.240" (6.10mm)
• Contact Length - Post: 0.110" (2.79mm)
• Overall Contact Length: 0.639" (16.23mm)
• Insulation Height: 0.549" (13.94mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold or Gold-Palladium
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish - Post: Tin-Lead
• Contact Material: -
• Insulation Material: -
• Features: Keying Slot, Mounting Flange
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 1A
• Voltage Rating: -
