5-104076-7
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

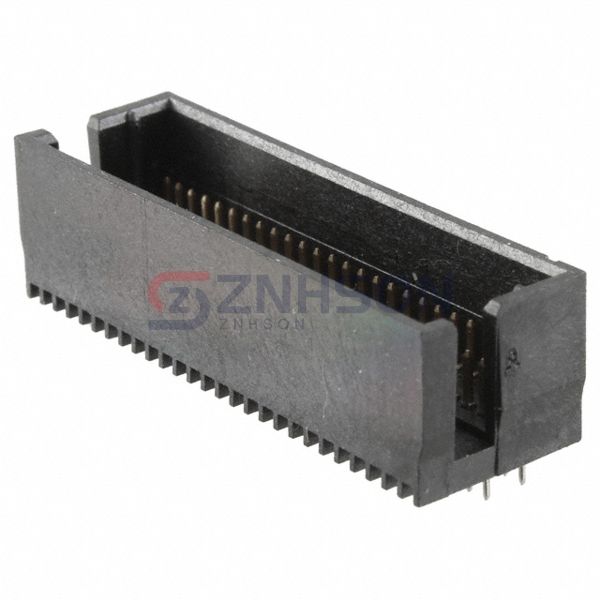

CONN HEADER VERT 50POS 1.27MM
$14.37
Available to order
Reference Price (USD)
420+
$11.67600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 5-104076-7 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 5-104076-7 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Card Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 30VAC
