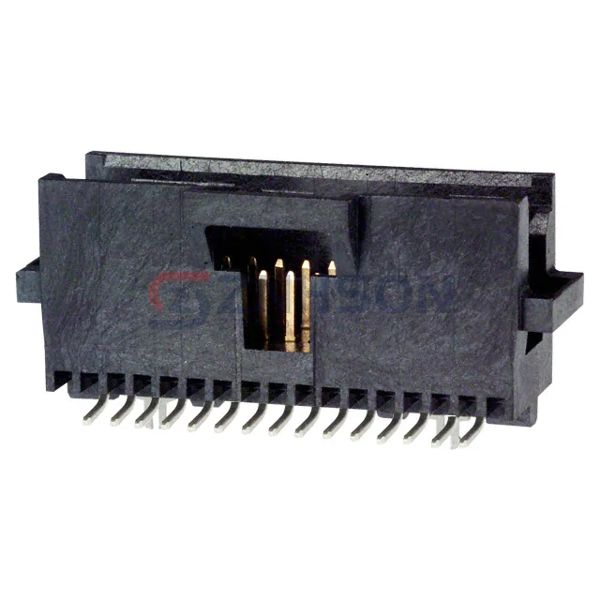

5-104549-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD 30POS 1.27MM
$8.14
Available to order
Reference Price (USD)
1+
$8.14000
500+
$8.0586
1000+
$7.9772
1500+
$7.8958
2000+
$7.8144
2500+
$7.733
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 5-104549-5 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.435" (11.05mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyphthalamide (PPA)
- Features: Board Lock
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 30VAC
Related Products
NorComp Inc.
26641001RP2
Samtec Inc.
HTSW-106-08-T-D-RA
Würth Elektronik
610112249121
Samtec Inc.
TSM-110-01-L-DH-LC-P
Harwin Inc.
M80-8260822
Samtec Inc.

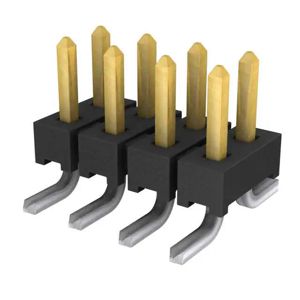

TMM-104-04-S-D-SM-P-TR
