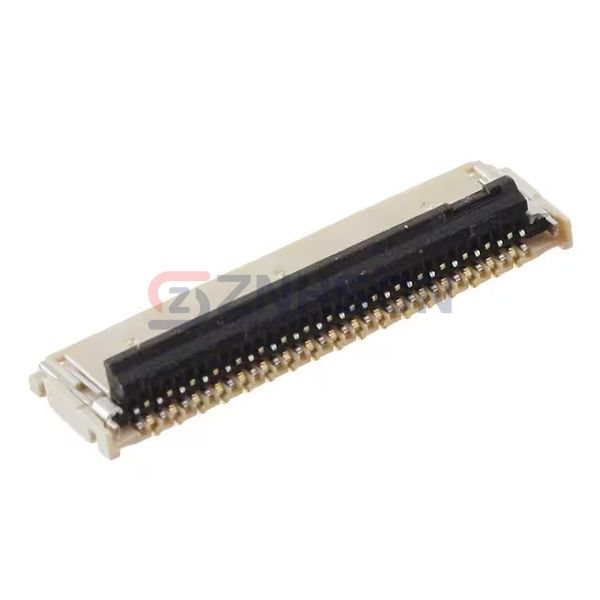

5022503591
Molex
Molex
CONN FPC 35POS 0.30MM R/A
$0.00
Available to order
Reference Price (USD)
3,000+
$1.64565
6,000+
$1.58470
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 5022503591 FFC/FPC Connectors from Molex, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 5022503591 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Molex's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 5022503591 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top and Bottom
- Number of Positions: 35
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.035" (0.88mm)
- Locking Feature: Flip Lock, Backlock
- Cable End Type: Notched or Tabbed
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: -
- Voltage Rating: 50V
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
Related Products
Amphenol ICC (FCI)
SLW18R-1C7
Hirose Electric Co Ltd
FH26W-61S-0.3SHW(98)
Omron Electronics Inc-EMC Div
XF2J-102412A
Molex
0543933918
Hirose Electric Co Ltd
FH19-9S-0.5SH(05)
Amphenol ICC (FCI)
SLW8R-5C7LF
Hirose Electric Co Ltd
FH34S-34S-0.5SH(50)
Omron Electronics Inc-EMC Div
XF2H-3515-1
Hirose Electric Co Ltd

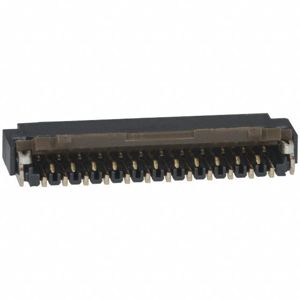

FH26W-23S-0.3SHW(99)
