5023860470
Molex
Molex

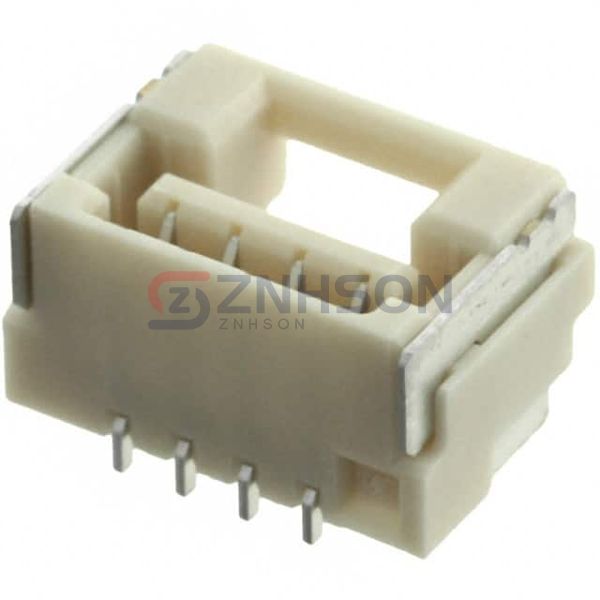

CONN RCPT 4POS 0.049 TIN SMD R/A
$0.82
Available to order
Reference Price (USD)
1,200+
$0.33231
2,400+
$0.30210
6,000+
$0.29203
8,400+
$0.27189
12,000+
$0.26786
30,000+
$0.26182
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5023860470 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Molex provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Cable/Wire
- Number of Positions: 4
- Number of Positions Loaded: All
- Pitch - Mating: 0.049" (1.25mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Insulation Color: Natural
- Insulation Height: 0.215" (5.45mm)
- Contact Length - Post: -
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Solder Retention
- Current Rating (Amps): 1A
- Voltage Rating: 50V
