5034800440
Molex
Molex

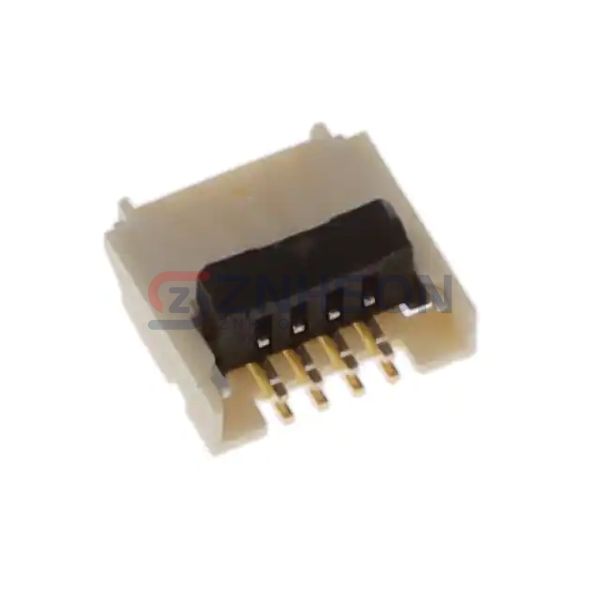

CONN FFC FPC 4POS 0.50MM R/A
$0.77
Available to order
Reference Price (USD)
1+
$0.77000
500+
$0.7623
1000+
$0.7546
1500+
$0.7469
2000+
$0.7392
2500+
$0.7315
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 5034800440 FFC/FPC Connectors from Molex, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 5034800440 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Molex's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 5034800440 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top and Bottom
- Number of Positions: 4
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.039" (1.00mm)
- Locking Feature: Flip Lock, Backlock
- Cable End Type: Straight or Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
