504265
TE Connectivity Erni
TE Connectivity Erni
MICBR M 5POS RA SMD W/O ELEC CPA
$4.99
Available to order
Reference Price (USD)
1+
$4.99000
500+
$4.9401
1000+
$4.8902
1500+
$4.8403
2000+
$4.7904
2500+
$4.7405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 504265 rectangular connector header from TE Connectivity Erni, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 504265 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity Erni guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.138" (3.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -40°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.7A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-119-05-G-S
Samtec Inc.
TMM-121-03-G-D
Molex
0026645060
Sullins Connector Solutions
PBC19SFCN
Preci-Dip
852-10-008-10-002101
Samtec Inc.
TSM-112-01-T-SV-A-P
Amphenol ICC (FCI)

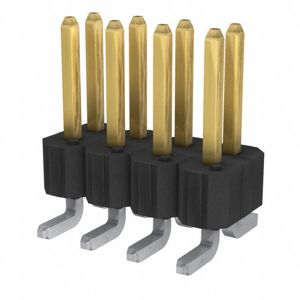

54202-S0804CLF
Samtec Inc.

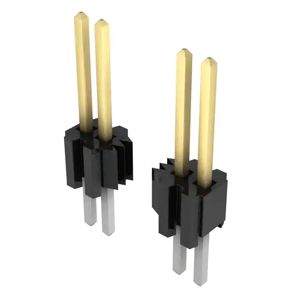

TMS-106-01-L-S
