5054330871
Molex
Molex

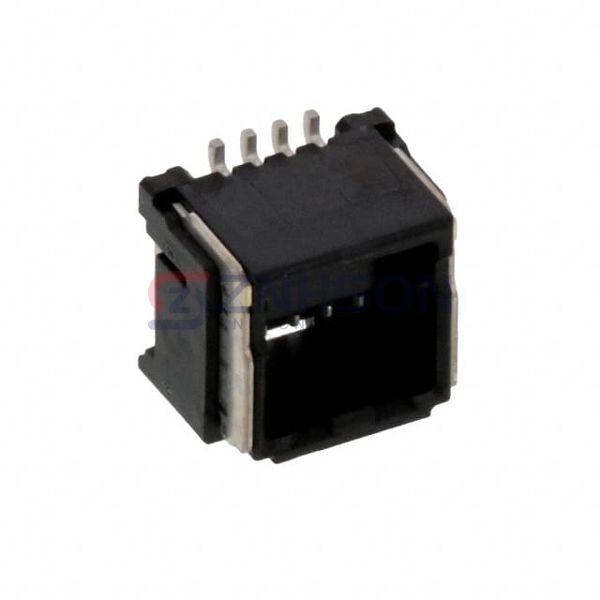

CONN HEADER SMD 8POS 1.25MM
$1.15
Available to order
Reference Price (USD)
500+
$0.61650
1,000+
$0.54800
1,500+
$0.51375
2,500+
$0.49662
5,000+
$0.47950
12,500+
$0.44525
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5054330871 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.285" (7.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC/DC
