5103309-8
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 40POS 2.54MM
$6.11
Available to order
Reference Price (USD)
1+
$4.71000
40+
$4.18175
120+
$3.83317
520+
$3.31042
1,000+
$2.87485
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 5103309-8 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 5103309-8 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.388" (9.86mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: -
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-116-23-G-D
TE Connectivity AMP Connectors
9-146305-0-14
Samtec Inc.
TFM-150-02-SM-D-A-P
Samtec Inc.
TSM-106-03-S-SH-A
Samtec Inc.
TFM-105-12-L-D-A-P-TR
TE Connectivity AMP Connectors

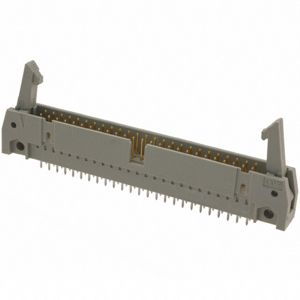

5-828590-0
TE Connectivity AMP Connectors

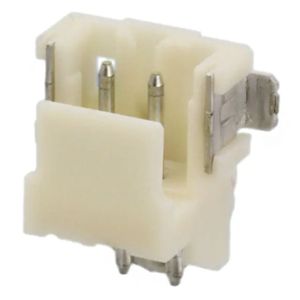

3-292173-2
Samtec Inc.
TSM-105-01-F-DV-LC
Samtec Inc.

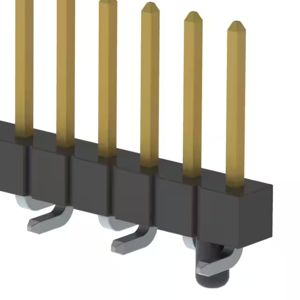

TSM-112-02-L-SV-A
