5227661-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

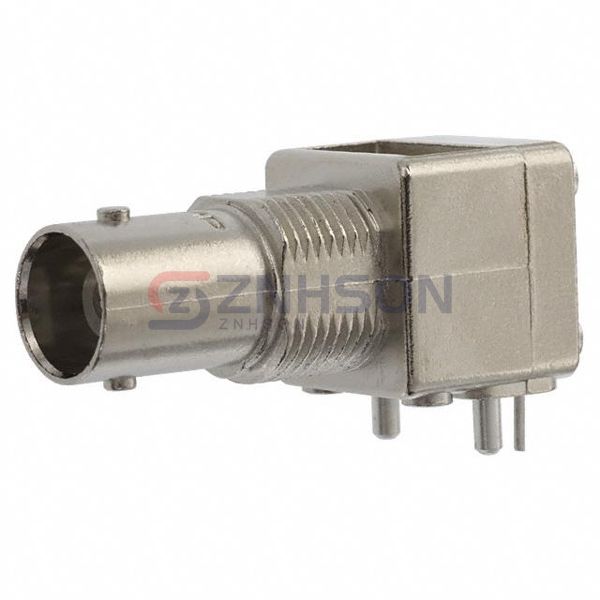

CONN BNC JACK R/A 50 OHM PCB
$6.12
Available to order
Reference Price (USD)
1+
$4.63000
10+
$4.44800
25+
$4.07720
50+
$3.89200
100+
$3.70660
250+
$3.24328
500+
$3.15062
1,000+
$2.68729
2,500+
$2.50196
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5227661-1 from TE Connectivity AMP Connectors represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 5227661-1 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
