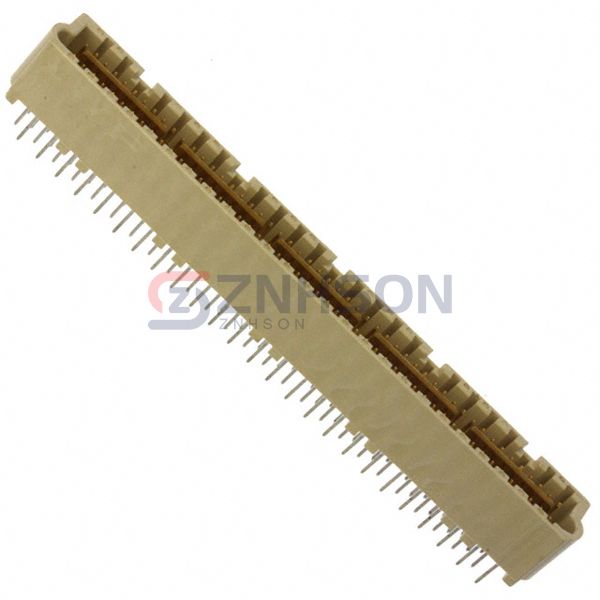

5536272-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 100POS 1.27MM
$41.21
Available to order
Reference Price (USD)
1+
$32.78000
16+
$29.59375
32+
$28.35344
56+
$26.58143
104+
$25.69529
256+
$24.27766
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 5536272-4 rectangular connector header by TE Connectivity AMP Connectors. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 5536272-4 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust TE Connectivity AMP Connectors for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Obsolete
- Connector Type: Plug
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.340" (8.64mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: Ground Bus (Plane)
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 30VAC
Related Products
Molex
0702800804
TE Connectivity AMP Connectors
1-1827872-5
Molex
1726470103
3M
N3440-6202RB
Preci-Dip
350-80-111-00-018101
Samtec Inc.

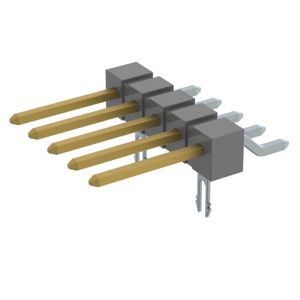

TSM-105-02-L-SH-LC-P
TE Connectivity AMP Connectors

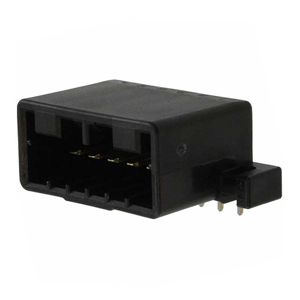

175783-2
Samtec Inc.

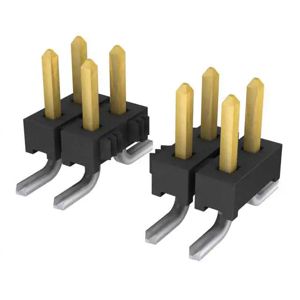

TMM-125-01-S-D-SM-P
