57102-F08-07ULF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

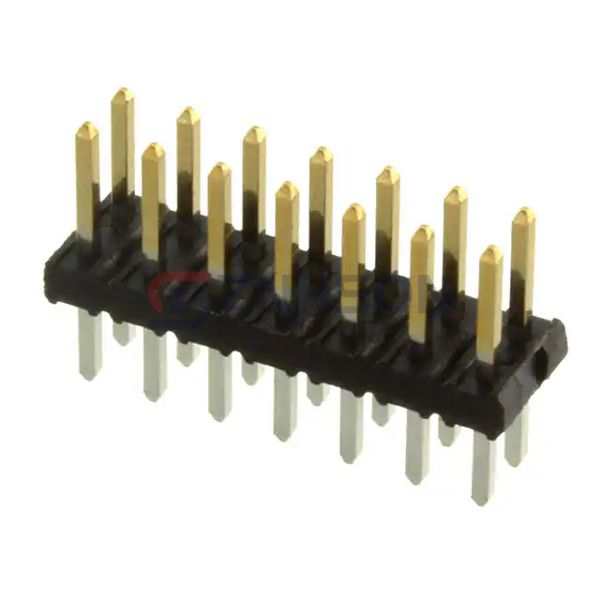

CONN HEADER VERT 14POS 2MM
$1.38
Available to order
Reference Price (USD)
1+
$1.09000
41+
$0.90122
123+
$0.82610
533+
$0.67589
1,025+
$0.60080
5,002+
$0.52570
10,004+
$0.49942
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 57102-F08-07ULF rectangular connector header from Amphenol ICC (FCI) for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Amphenol ICC (FCI) is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A (AC/DC)
- Voltage Rating: 200V (AC/DC)
