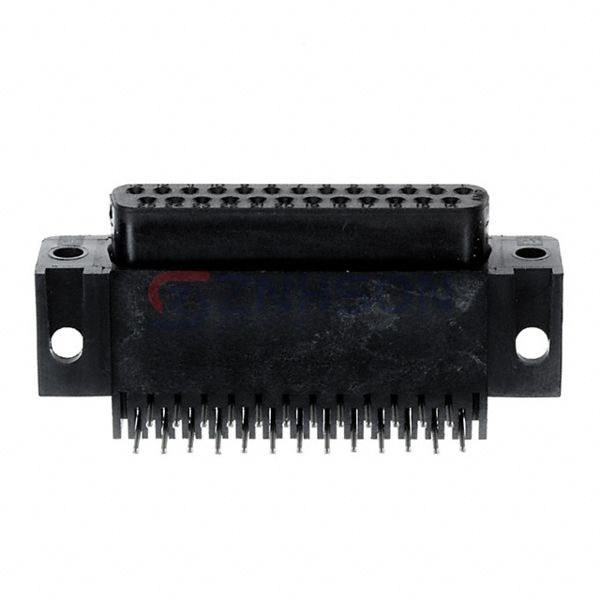

5747461-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN D-SUB RCPT 25POS R/A SLDR
$11.26
Available to order
Reference Price (USD)
1+
$8.52000
10+
$8.15000
25+
$7.40880
70+
$7.03829
140+
$6.85307
280+
$6.11218
560+
$5.74175
1,050+
$5.07496
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TE Connectivity AMP Connectors presents the 5747461-1 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 5747461-1 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: -
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 6A
- Backset Spacing: 0.590" (14.99mm)
- Features: -
