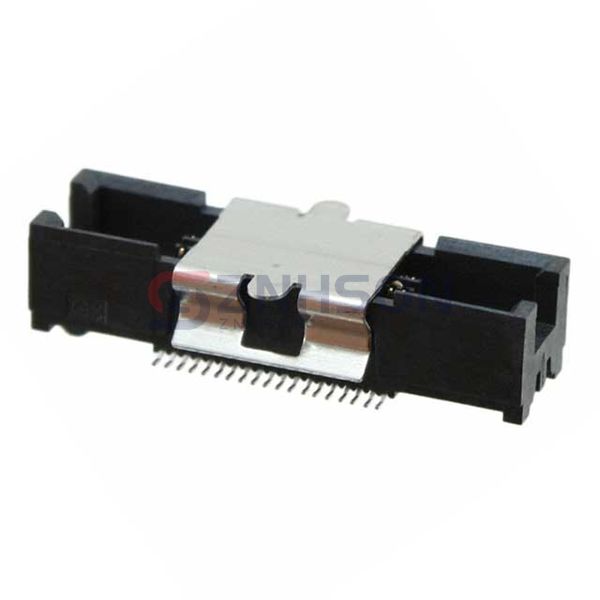

5767096-8

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN RCPT 38POS SMD GOLD

Datasheet:

5767096-8 Datasheet

$19.36

Available to order

Reference Price (USD)

252+

$8.27000

504+

$7.73647

756+

$7.30962

1,260+

$7.09620

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 5767096-8 by TE Connectivity AMP Connectors is a high-quality rectangular connector perfect for array and edge-type board-to-board applications. Its mezzanine design provides excellent electrical performance and mechanical stability, even in challenging conditions. These connectors are commonly employed in medical imaging devices, telecommunications infrastructure, and defense electronics. For instance, they are used in MRI machines, base station antennas, and unmanned aerial vehicles. With 5767096-8, you can trust in a connector that meets the rigorous demands of modern technology.

Specifications

Product Status: Active
Connector Type: Receptacle, Center Strip Contacts
Number of Positions: 38
Pitch: 0.025" (0.64mm)
Number of Rows: 2
Mounting Type: Surface Mount
Features: Board Guide, Ground Bus (Plane)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
Height Above Board: 0.236" (6.00mm)
