5962-9073703MPA
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

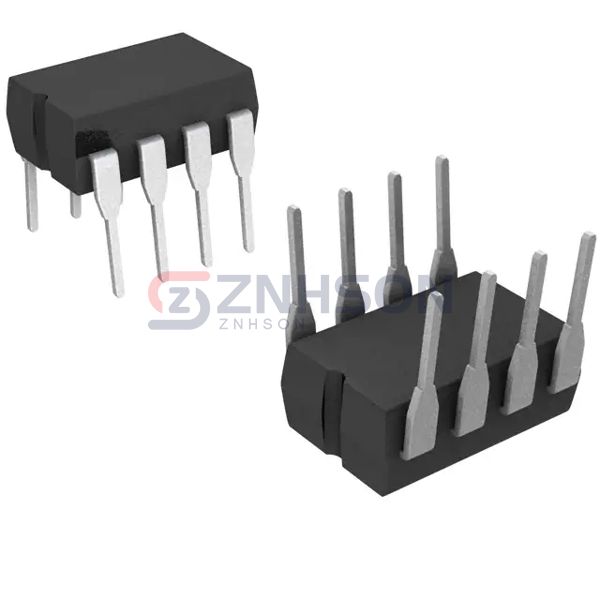

IC SWITCH SPDT 8CERDIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc./Maxim Integrated's 5962-9073703MPA, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The 5962-9073703MPA meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 30Ohm
- Channel-to-Channel Matching (ΔRon): 3Ohm (Max)
- Voltage - Supply, Single (V+): 10V ~ 30V
- Voltage - Supply, Dual (V±): ±4.5V ~ 20V
- Switch Time (Ton, Toff) (Max): 175ns, 145ns
- -3db Bandwidth: -
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 8pF, 8pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: 8-CDIP (0.300", 7.62mm)
- Supplier Device Package: 8-CERDIP
