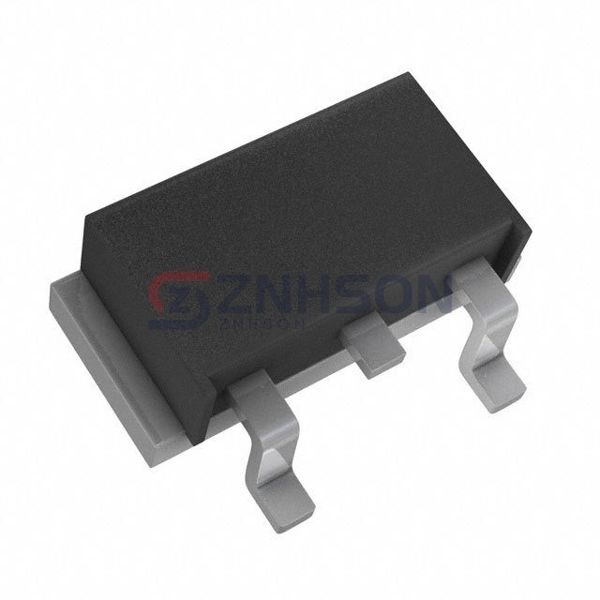

60CNQ045SL
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 45V 30A PRM3-SL
$17.80
Available to order
Reference Price (USD)
100+
$19.73710
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the 60CNQ045SL by SMC Diode Solutions represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With SMC Diode Solutions's patented junction design, the 60CNQ045SL achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io) (per Diode): 30A
- Voltage - Forward (Vf) (Max) @ If: 640 mV @ 30 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 5 mA @ 45 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: PRM3-SL
- Supplier Device Package: PRM3-SL
