61202020621
Würth Elektronik
Würth Elektronik

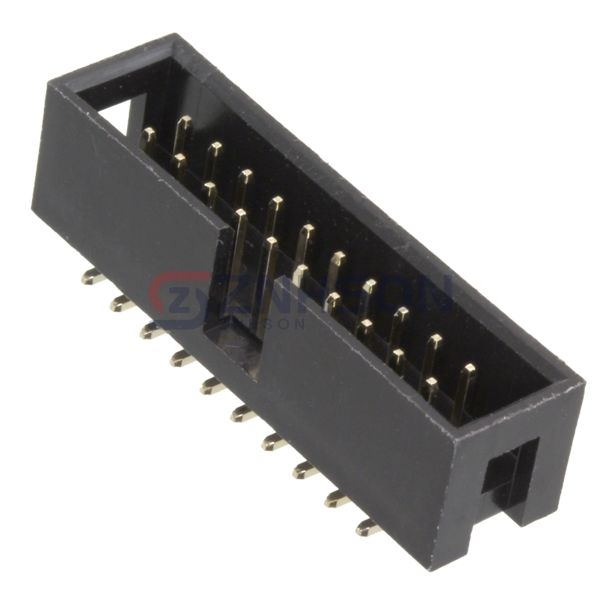

CONN HEADER SMD 20POS 2.54MM
$4.91
Available to order
Reference Price (USD)
1+
$4.61000
10+
$4.42400
17+
$3.88824
34+
$3.35206
68+
$2.81500
136+
$2.41301
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 61202020621 rectangular connector header from Würth Elektronik, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 61202020621 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Würth Elektronik guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Discontinued at Digi-Key
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.200" (5.08mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.365" (9.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Keying Slot
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250V
