61300821121
Würth Elektronik
Würth Elektronik
CONN HEADER VERT 8POS 2.54MM
$0.70
Available to order
Reference Price (USD)
1+
$0.66000
10+
$0.55700
25+
$0.46400
50+
$0.38700
100+
$0.35200
1,000+
$0.32000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

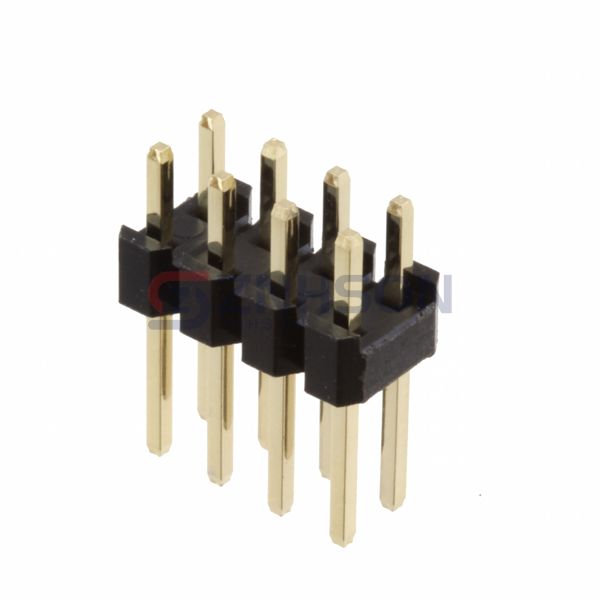

The 61300821121 by Würth Elektronik is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Würth Elektronik delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.454" (11.54mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250V
