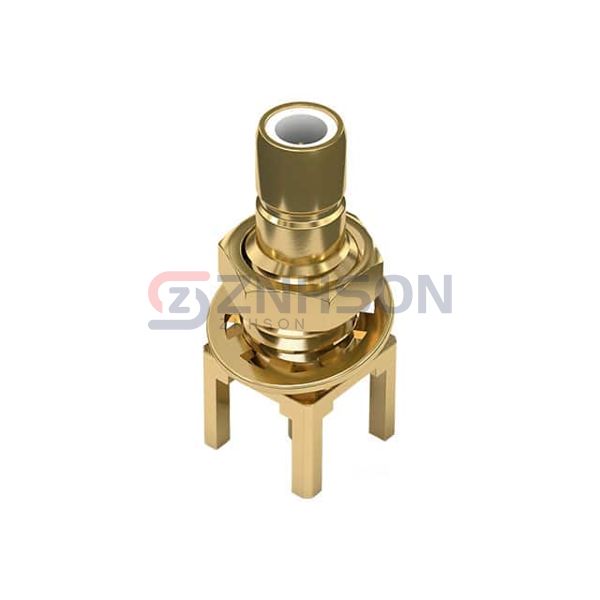

61612042121504
Würth Elektronik
Würth Elektronik
WR-SMB_PCB CONNECTOR_ THT JACK
$7.27
Available to order
Reference Price (USD)
1+
$7.27000
500+
$7.1973
1000+
$7.1246
1500+
$7.0519
2000+
$6.9792
2500+
$6.9065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 61612042121504 from Würth Elektronik represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 61612042121504 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Through Hole
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
Related Products
Amphenol RF
112512
Radiall USA, Inc.
R112305000
Cinch Connectivity Solutions Johnson
142-9701-811
Amphenol SV Microwave
9311-60015
Amphenol RF
122116
Amphenol SV Microwave
SF2921-61345-1S
RF Industries
RFN-1021-5
Radiall USA, Inc.
9079-9513-000
Radiall USA, Inc.

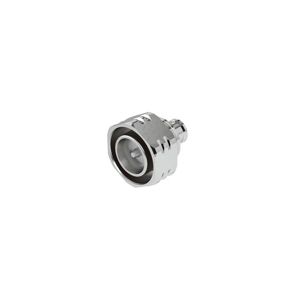

R183030017
