62000711622
Würth Elektronik
Würth Elektronik
WR-WTB WIRE-TO-BOARD CONNECTORS
$0.39
Available to order
Reference Price (USD)
1+
$0.39400
500+
$0.39006
1000+
$0.38612
1500+
$0.38218
2000+
$0.37824
2500+
$0.3743
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

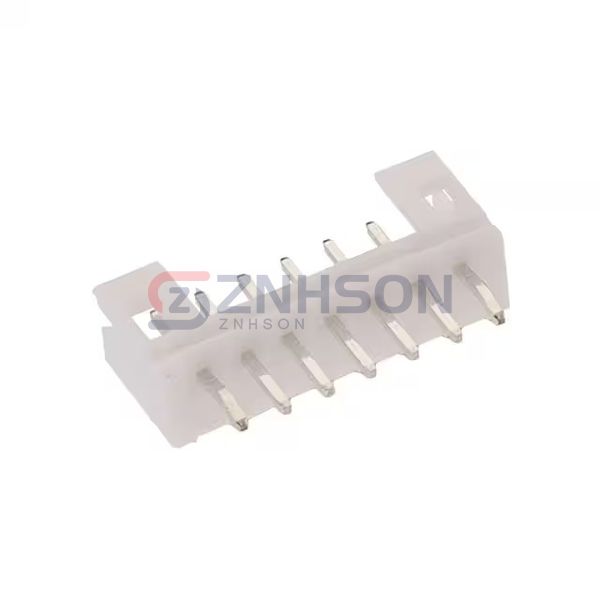

The 62000711622 male pin header by Würth Elektronik offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Würth Elektronik for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC
Related Products
TE Connectivity AMP Connectors
292206-5
Samtec Inc.
TSW-128-23-T-D
Molex
1722982114
Samtec Inc.
ZSS-103-04-S-D-840
Samtec Inc.
TSW-109-08-L-S-RA
Preci-Dip
350-10-139-00-206101
Preci-Dip

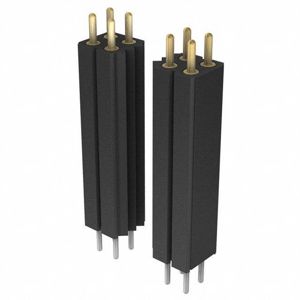

802-V3-030-10-193101
TE Connectivity AMP Connectors

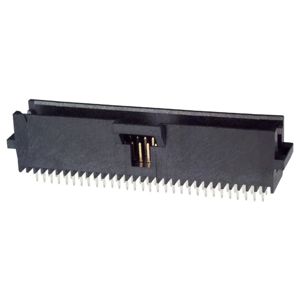

5-104068-6
Samtec Inc.

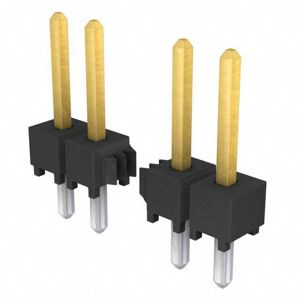

TSW-126-23-L-S
