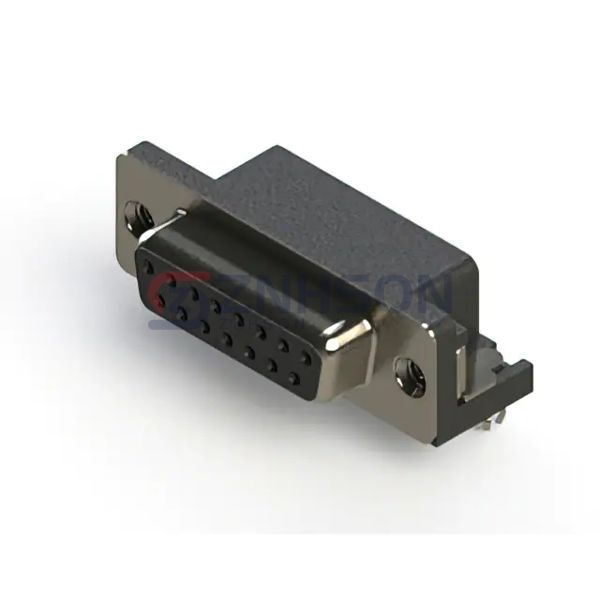

622-015-260-042
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 15POS R/A SLDR
$3.20
Available to order
Reference Price (USD)
1+
$1.57000
10+
$1.42100
25+
$1.33400
50+
$1.27600
100+
$1.21800
250+
$1.10200
500+
$1.01500
1,000+
$0.87000
2,500+
$0.81200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 622-015-260-042 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 622-015-260-042 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 15
- Number of Rows: 2
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A)
- Contact Type: Signal
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.318" (8.08mm)
- Features: Board Lock, Mounting Brackets, Shielded
Related Products
EDAC Inc.
637-062-232-243
EDAC Inc.
627-M09-322-LT2
EDAC Inc.
629-17W5640-7N3
PEI-Genesis
DD78S10HT0/AA
TE Connectivity AMP Connectors
1-747150-4
TE Connectivity AMP Connectors
747193-1
EDAC Inc.
630-2W2-650-1NA
EDAC Inc.
629-25W3240-1N1
EDAC Inc.

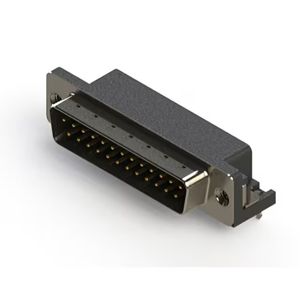

621-025-360-032
