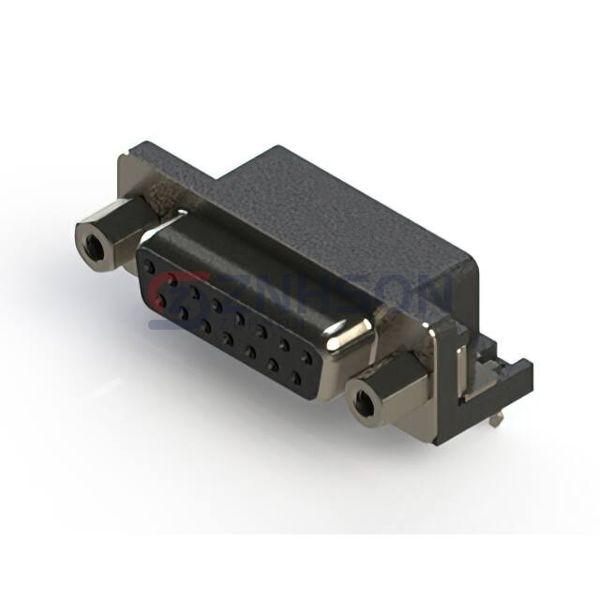

622-015-660-533
EDAC Inc.
EDAC Inc.
622 SERIES RIGHT ANGLE D-SUB REC
$5.45
Available to order
Reference Price (USD)
1+
$5.44635
500+
$5.3918865
1000+
$5.337423
1500+
$5.2829595
2000+
$5.228496
2500+
$5.1740325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 622-015-660-533 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 622-015-660-533 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 15
- Number of Rows: 2
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A)
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.318" (8.08mm)
- Features: Board Lock, Mounting Brackets, Shielded
