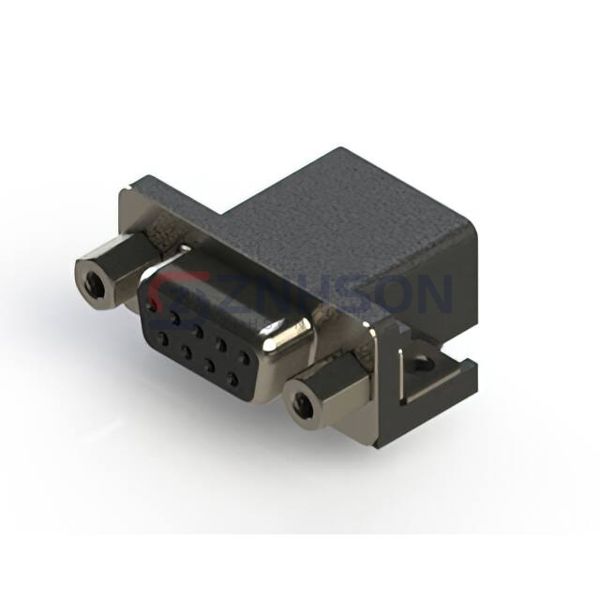

626-009-362-513
EDAC Inc.
EDAC Inc.
626 SERIES RIGHT ANGLE D-SUB REC
$5.12
Available to order
Reference Price (USD)
1+
$5.11560
500+
$5.064444
1000+
$5.013288
1500+
$4.962132
2000+
$4.910976
2500+
$4.85982
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 626-009-362-513 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 626-009-362-513 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9
- Number of Rows: 2
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E)
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.584" (14.84mm)
- Features: Mounting Brackets, Shielded
Related Products
EDAC Inc.
629-25W3650-3NE
EDAC Inc.
627W21W1124-2N5
EDAC Inc.
630-11W1240-3N5
EDAC Inc.
629W11W1240-2N2
EDAC Inc.
622-M09-360-WT4
EDAC Inc.
630-3W3-650-4TB
EDAC Inc.
628-25W3224-2N1
Positronic

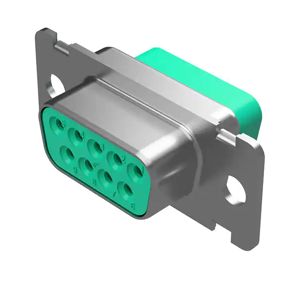

RD25S10GV3X
EDAC Inc.

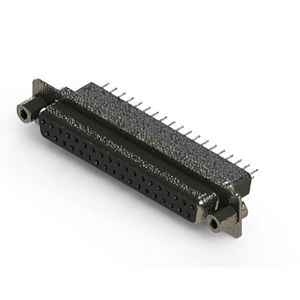

628-037-621-253
