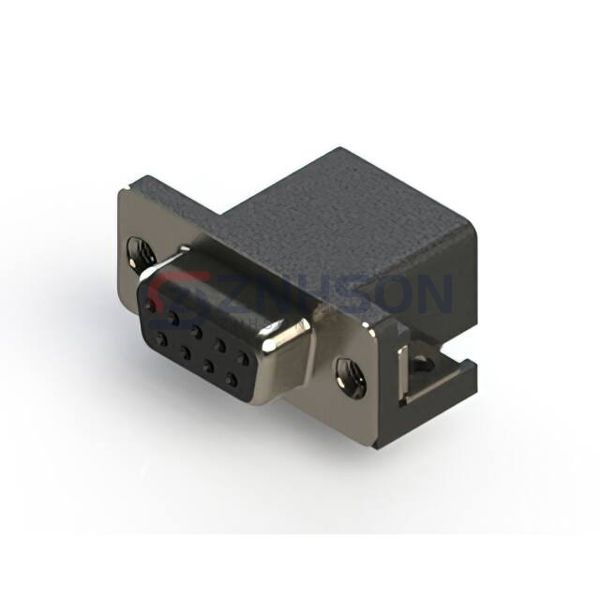

626-009-362-515
EDAC Inc.
EDAC Inc.
626 SERIES RIGHT ANGLE D-SUB REC
$4.63
Available to order
Reference Price (USD)
1+
$4.63040
500+
$4.584096
1000+
$4.537792
1500+
$4.491488
2000+
$4.445184
2500+
$4.39888
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 626-009-362-515 from EDAC Inc. represents the next evolution in D-Sub connector technology within our Connectors division. These high-reliability interconnects feature glass-filled thermoplastic shells for lightweight applications and include EMI/RFI filtering options. With operating temperatures from -55 C to +125 C, the 626-009-362-515 series is perfect for oilfield instrumentation, marine navigation systems, and outdoor telecom infrastructure. The unique dual-lock design ensures positive mating retention even under extreme shock conditions, making these connectors preferred for defense applications and mobile emergency response equipment.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9
- Number of Rows: 2
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E)
- Contact Type: Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.584" (14.84mm)
- Features: Mounting Brackets, Shielded
Related Products
EDAC Inc.
628-M09-221-LT1
EDAC Inc.
627W3W3-324-4N5
EDAC Inc.
638-026-230-068
EDAC Inc.

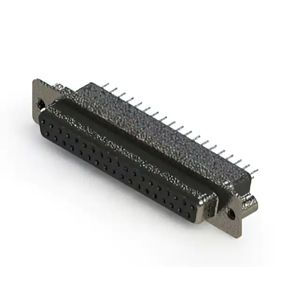

628-037-321-259
EDAC Inc.

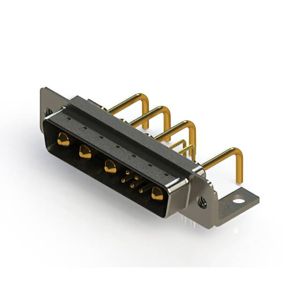

629-9W4-250-1T4
EDAC Inc.

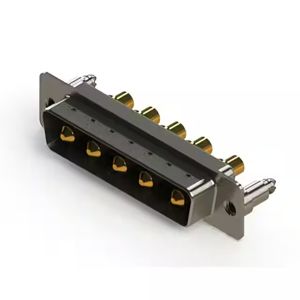

627-5W5-224-4TD
EDAC Inc.

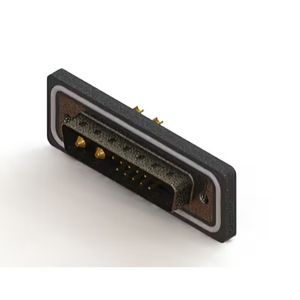

627W13W3222-1N2
EDAC Inc.
630-5W5-650-3N2
EDAC Inc.

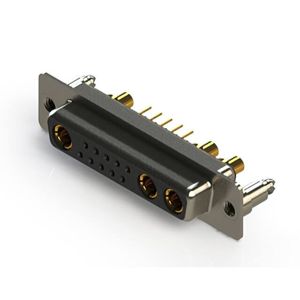

628-13W3624-3N5
