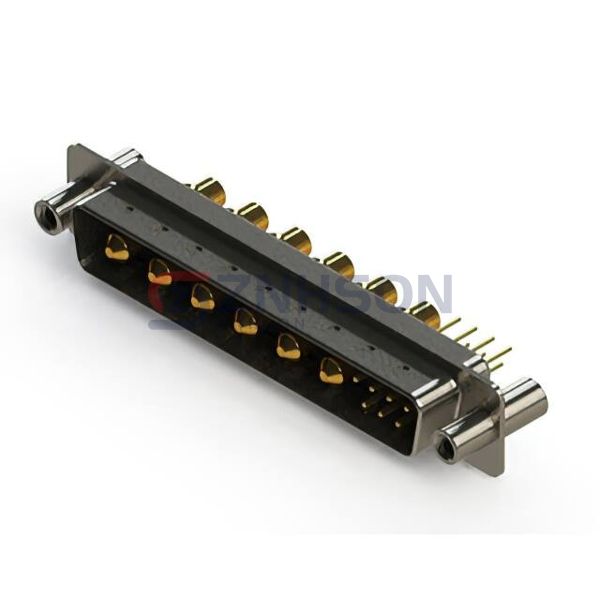

627-13W6224-4N4
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 13P PNL MNT SLDR
$12.12
Available to order
Reference Price (USD)
1+
$12.12020
500+
$11.998998
1000+
$11.877796
1500+
$11.756594
2000+
$11.635392
2500+
$11.51419
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 627-13W6224-4N4 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 627-13W6224-4N4 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 13 (7 + 6 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 4 (DC, C) - 13W6
- Contact Type: Signal and Power
- Flange Feature: Board Side (4-40); Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: -
- Features: Grounding Indents, Shielded
Related Products
EDAC Inc.
627-M15-322-WN1
EDAC Inc.
629-3WK3250-4T1
EDAC Inc.
630-43W2640-4N4
PEI-Genesis
DD15M2S50V3S/AA
EDAC Inc.
627-3WK3624-4TD
PEI-Genesis
DD15M2S50V3Z
EDAC Inc.
664-015-364-043
EDAC Inc.
630-17W2650-3N1
EDAC Inc.

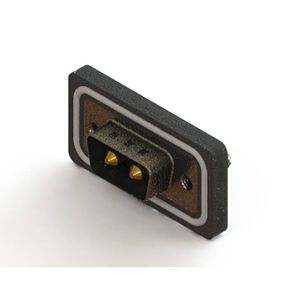

627W2W2-124-1ND
