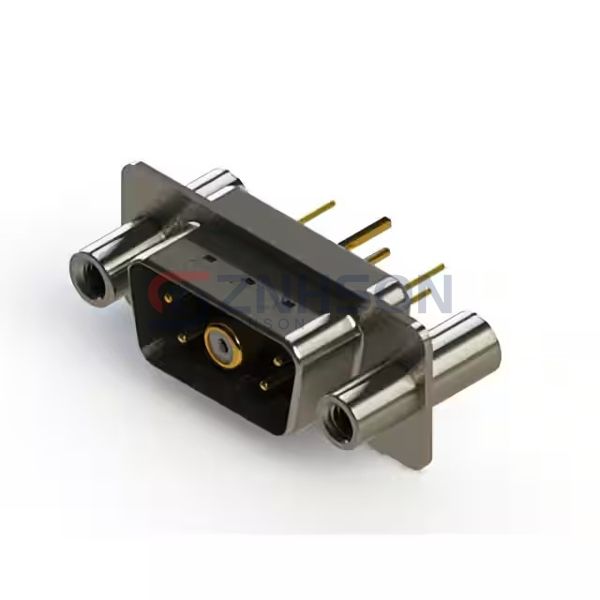

627-5W1-624-5TC
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 5P PNL MNT SLDR
$9.98
Available to order
Reference Price (USD)
1+
$9.97658
500+
$9.8768142
1000+
$9.7770484
1500+
$9.6772826
2000+
$9.5775168
2500+
$9.477751
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 627-5W1-624-5TC D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 627-5W1-624-5TC differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 5 (4 + 1 Coax)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 1 (DE, E) - 5W1
- Contact Type: Coax and Signal
- Flange Feature: Board Side (M3); Mating Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Grounding Indents, Shielded
Related Products
EDAC Inc.
628-009-351-077
EDAC Inc.
628-M37-221-BN4
EDAC Inc.
628-M15-622-BN1
EDAC Inc.
628-M15-623-GT3
EDAC Inc.
621-M25-660-GT5
EDAC Inc.
629W21W1140-3NB
EDAC Inc.
630-7W2-250-3NA
EDAC Inc.
630-7W2-650-1TB
EDAC Inc.

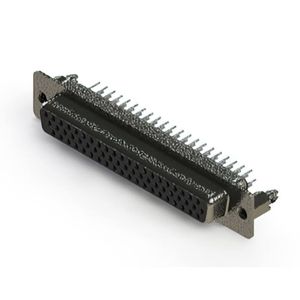

638-062-330-266
