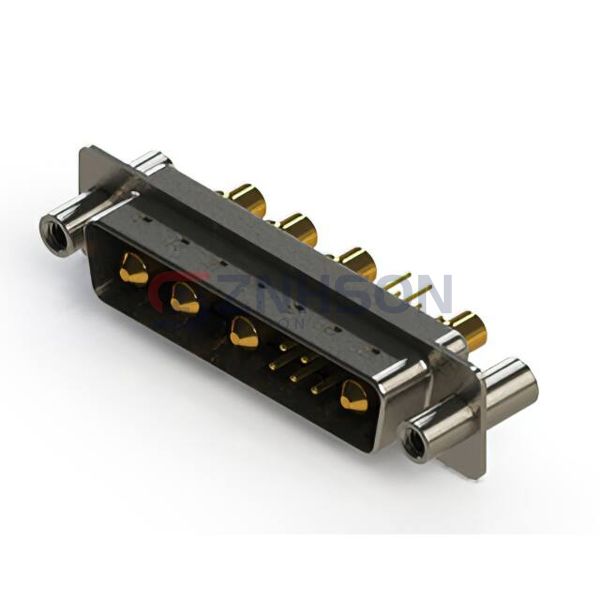

627-9W4-624-4T4
EDAC Inc.
EDAC Inc.
CONN D-SUB PLUG 9P PNL MNT SLDR
$19.46
Available to order
Reference Price (USD)
1+
$19.45760
500+
$19.263024
1000+
$19.068448
1500+
$18.873872
2000+
$18.679296
2500+
$18.48472
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 627-9W4-624-4T4 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 627-9W4-624-4T4 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 9 (5 + 4 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Power
- Flange Feature: Board Side (4-40); Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: -
- Features: Grounding Indents, Shielded
Related Products
EDAC Inc.
627-2WK2224-1ND
EDAC Inc.
630-27W2640-7N2
EDAC Inc.
627-2WK2224-3N6
EDAC Inc.
630-3W3-640-4TD
PEI-Genesis
DD62S1S50V30/AA
EDAC Inc.
628-24W7624-2NE
EDAC Inc.

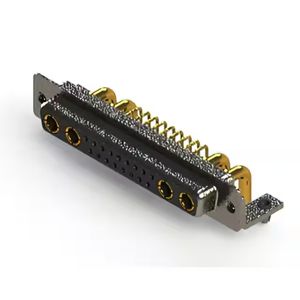

630-21W4640-3N3
EDAC Inc.
629W17W2240-1NC
EDAC Inc.

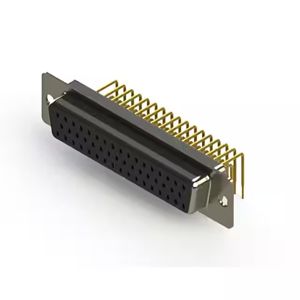

630-M50-240-BT1
