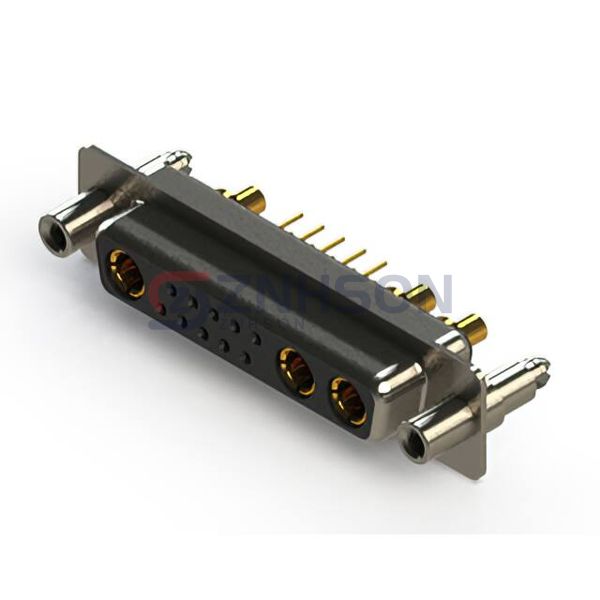

628-13W3624-2TE
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 13POS VERT SLDR
$19.31
Available to order
Reference Price (USD)
1+
$19.30530
500+
$19.112247
1000+
$18.919194
1500+
$18.726141
2000+
$18.533088
2500+
$18.340035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 628-13W3624-2TE D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 628-13W3624-2TE stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (10 + 3 Power)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 13C3, 13W3
- Contact Type: Signal and Power
- Flange Feature: Mating Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: -
- Features: Board Lock, Shielded
Related Products
EDAC Inc.
629-5W1-250-1N6
EDAC Inc.
629-21W1240-7T4
EDAC Inc.
628-M50-221-BT2
EDAC Inc.
628-21W4624-2TC
EDAC Inc.
630-21W4250-2ND
EDAC Inc.
627W3W3-324-2NA
EDAC Inc.
621-M25-360-LT1
EDAC Inc.
630-25W3640-4TD
EDAC Inc.

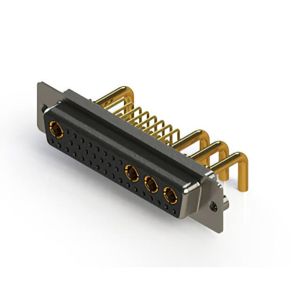

630-36W4650-2N2
