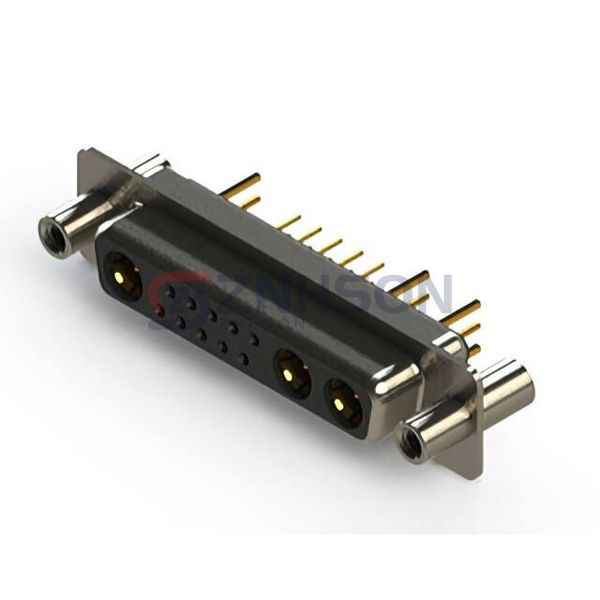

628-13W3624-7N4
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 13POS VERT SLDR
$22.37
Available to order
Reference Price (USD)
1+
$22.36550
500+
$22.141845
1000+
$21.91819
1500+
$21.694535
2000+
$21.47088
2500+
$21.247225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628-13W3624-7N4 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628-13W3624-7N4 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (10 + 3 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 13C3, 13W3
- Contact Type: Coax and Signal
- Flange Feature: Board Side (4-40); Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Shielded
Related Products
EDAC Inc.
629-5W5-650-1N4
EDAC Inc.
627-2W2-224-1TB
NorComp Inc.
780-M15-203L001
EDAC Inc.
628-M25-321-BT5
EDAC Inc.
630-25W3640-3N6
EDAC Inc.

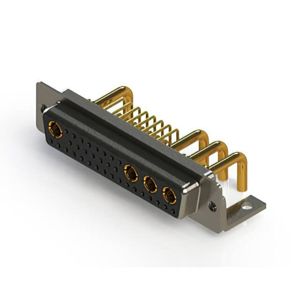

630-36W4250-2N4
EDAC Inc.

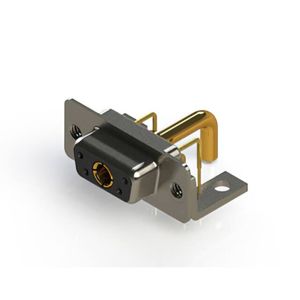

630-5W1-250-3N4
ITT Cannon, LLC

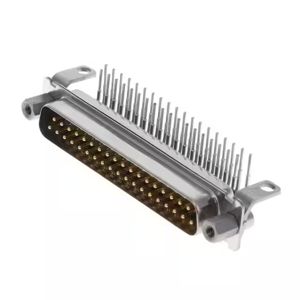

DCMD37PJF225
EDAC Inc.

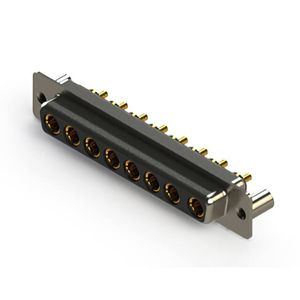

628-8W8-624-1TB
