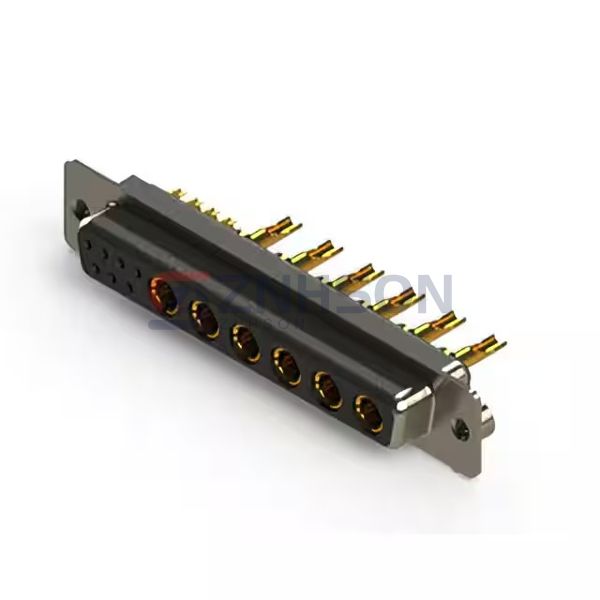

628-13W6222-1NA
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 13POS SLDR CUP
$12.60
Available to order
Reference Price (USD)
1+
$12.60210
500+
$12.476079
1000+
$12.350058
1500+
$12.224037
2000+
$12.098016
2500+
$11.971995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628-13W6222-1NA redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628-13W6222-1NA is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (7 + 6 Power)
- Number of Rows: 2
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 4 (DC, C) - 13W6
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: -
- Features: Shielded
