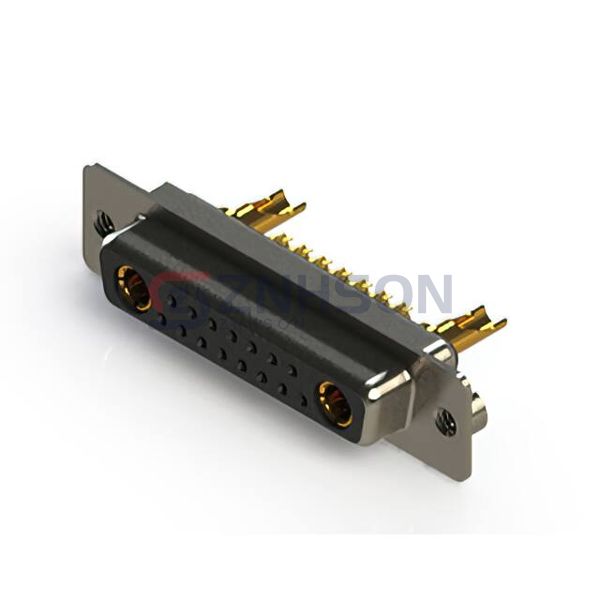

628-17W2622-2N2
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 17POS SLDR CUP
$20.08
Available to order
Reference Price (USD)
1+
$20.08180
500+
$19.880982
1000+
$19.680164
1500+
$19.479346
2000+
$19.278528
2500+
$19.07771
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 628-17W2622-2N2 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 628-17W2622-2N2 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 17 (15 + 2 Power)
- Number of Rows: 2
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 3 (DB, B) - 17W2
- Contact Type: Signal and Power
- Flange Feature: Board Side (4-40)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: -
- Features: Shielded
Related Products
EDAC Inc.
630-21W4650-2TC
EDAC Inc.
627-M25-320-WT4
EDAC Inc.
630-43W2650-4T4
EDAC Inc.
627-015-220-266
EDAC Inc.
629-2W2-640-4N6
EDAC Inc.
627W13W3224-3ND
EDAC Inc.
663-037-364-049
EDAC Inc.

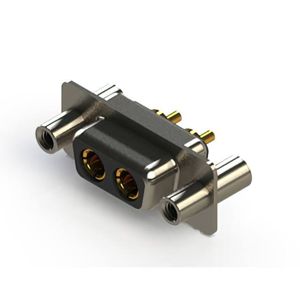

628-2W2-224-1T4
EDAC Inc.

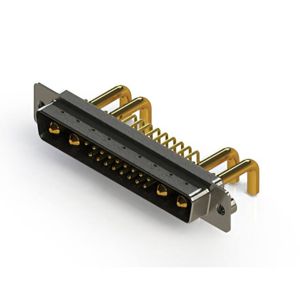

629-21W4250-3T2
