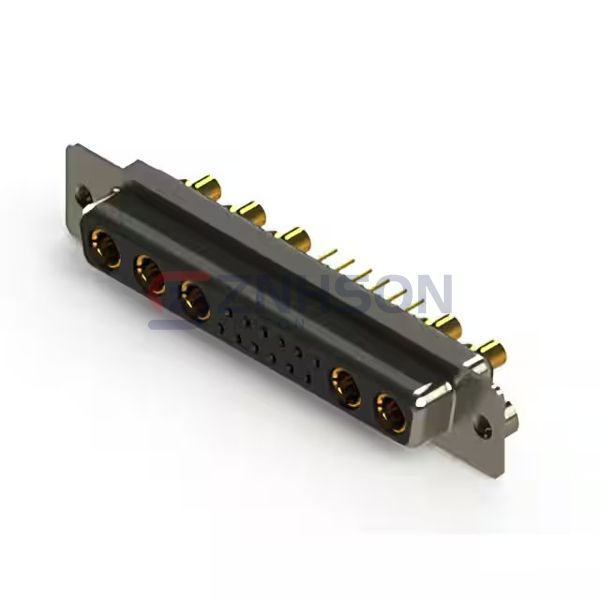

628-17W5624-3NA
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 17POS VERT SLDR
$28.01
Available to order
Reference Price (USD)
1+
$28.01400
500+
$27.73386
1000+
$27.45372
1500+
$27.17358
2000+
$26.89344
2500+
$26.6133
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 628-17W5624-3NA D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 628-17W5624-3NA is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 17 (12 + 5 Power)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 4 (DC, C) - 17W5
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: -
- Features: Shielded
Related Products
EDAC Inc.
630W9W4-140-1N3
EDAC Inc.
630-8W8-250-3N4
EDAC Inc.
627-5W5-224-5T6
EDAC Inc.
634-015-263-540
EDAC Inc.
627-3W3-224-1T1
EDAC Inc.
629-47W1640-4N4
EDAC Inc.
621-M50-660-WN5
Amphenol ICC (FCI)

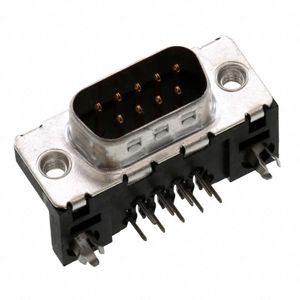

ID09P33E4GX00LF
EDAC Inc.

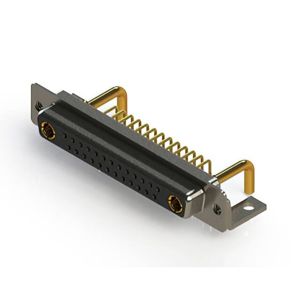

630-27W2650-2T4
