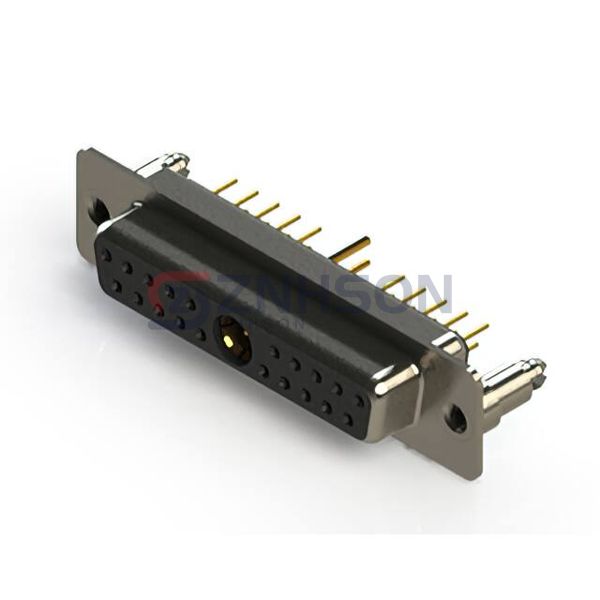

628-21W1224-7TD
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 21POS VERT SLDR
$9.05
Available to order
Reference Price (USD)
1+
$9.05000
500+
$8.9595
1000+
$8.869
1500+
$8.7785
2000+
$8.688
2500+
$8.5975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-21W1224-7TD from EDAC Inc. represents the next evolution in D-Sub connector technology within our Connectors division. These high-reliability interconnects feature glass-filled thermoplastic shells for lightweight applications and include EMI/RFI filtering options. With operating temperatures from -55 C to +125 C, the 628-21W1224-7TD series is perfect for oilfield instrumentation, marine navigation systems, and outdoor telecom infrastructure. The unique dual-lock design ensures positive mating retention even under extreme shock conditions, making these connectors preferred for defense applications and mobile emergency response equipment.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 21 (20 + 1 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 21W1
- Contact Type: Coax and Signal
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Board Lock, Shielded
Related Products
EDAC Inc.
628-17W5222-3T1
EDAC Inc.
629-13W3240-5T6
Omnetics
A29200-015
EDAC Inc.
629-21W1240-4T2
EDAC Inc.
634-062-263-055
EDAC Inc.

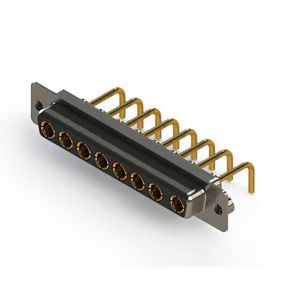

630-8W8-250-1N2
Positronic
DD26S20HT20
EDAC Inc.

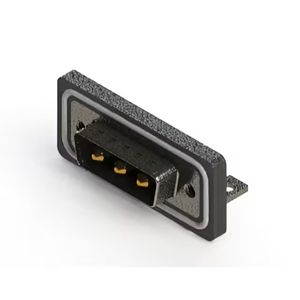

629W3W3-140-2NC
EDAC Inc.

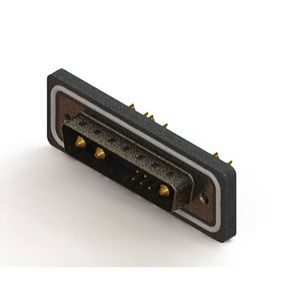

627W9W4-322-4NA
