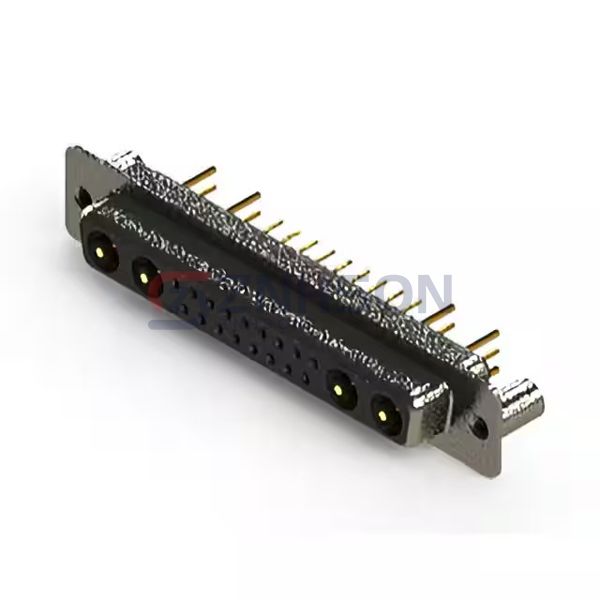

628-21W4224-5TB
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 21POS VERT SLDR
$13.37
Available to order
Reference Price (USD)
1+
$13.36960
500+
$13.235904
1000+
$13.102208
1500+
$12.968512
2000+
$12.834816
2500+
$12.70112
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628-21W4224-5TB redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628-21W4224-5TB is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 21 (17 + 4 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 4 (DC, C) - 21WA4
- Contact Type: Coax and Signal
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Shielded
Related Products
EDAC Inc.
662-025-364-039
EDAC Inc.
634-015-663-511
EDAC Inc.
628-3W3-624-3N1
EDAC Inc.
629-11W1640-3TC
EDAC Inc.
628-3W3-224-3TB

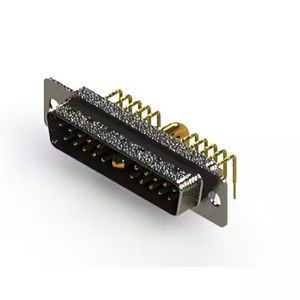

EDAC Inc.
629-21W1640-3N1
Positronic
DD26S1S50V5S

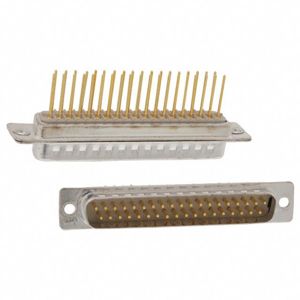

NorComp Inc.
