628-24W7222-4TA
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 24POS SLDR CUP
$14.71
Available to order
Reference Price (USD)
1+
$14.71050
500+
$14.563395
1000+
$14.41629
1500+
$14.269185
2000+
$14.12208
2500+
$13.974975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628-24W7222-4TA redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628-24W7222-4TA is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 24 (17 + 7 Power)
- Number of Rows: 2
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 5 (DD, D) - 24W7
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: -
- Features: Shielded
Related Products
EDAC Inc.
628-015-281-057
EDAC Inc.
638-015-232-242
EDAC Inc.
629-8W8-250-2TA
EDAC Inc.
630W5W1-240-4N2
EDAC Inc.
629-M50-340-BN2
EDAC Inc.
628-M25-322-LN1
EDAC Inc.
662-025-364-051
EDAC Inc.
629-2WK2640-5N4
EDAC Inc.

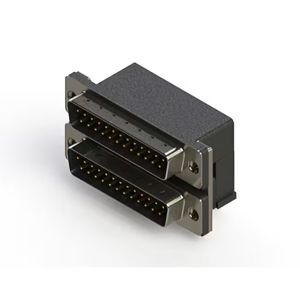

661-025-664-001
