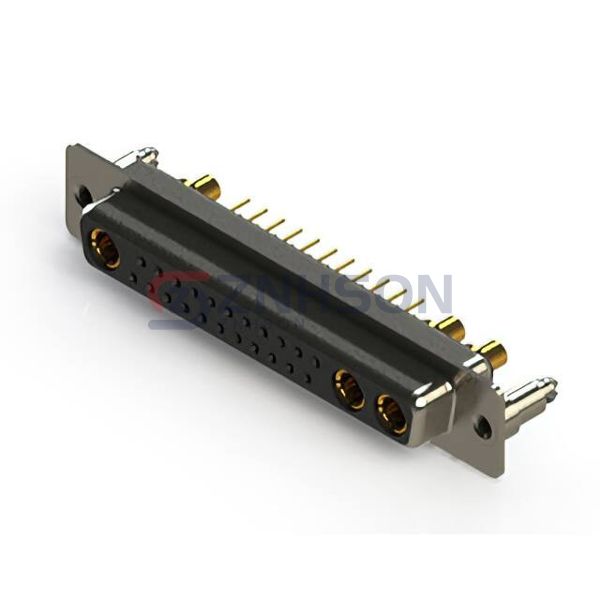

628-25W3224-3ND
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 25POS VERT SLDR
$11.62
Available to order
Reference Price (USD)
1+
$11.62040
500+
$11.504196
1000+
$11.387992
1500+
$11.271788
2000+
$11.155584
2500+
$11.03938
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-25W3224-3ND from EDAC Inc. represents the next evolution in D-Sub connector technology within our Connectors division. These high-reliability interconnects feature glass-filled thermoplastic shells for lightweight applications and include EMI/RFI filtering options. With operating temperatures from -55 C to +125 C, the 628-25W3224-3ND series is perfect for oilfield instrumentation, marine navigation systems, and outdoor telecom infrastructure. The unique dual-lock design ensures positive mating retention even under extreme shock conditions, making these connectors preferred for defense applications and mobile emergency response equipment.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25 (22 + 3 Power)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 4 (DC, C) - 25W3
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: -
- Features: Board Lock, Shielded
