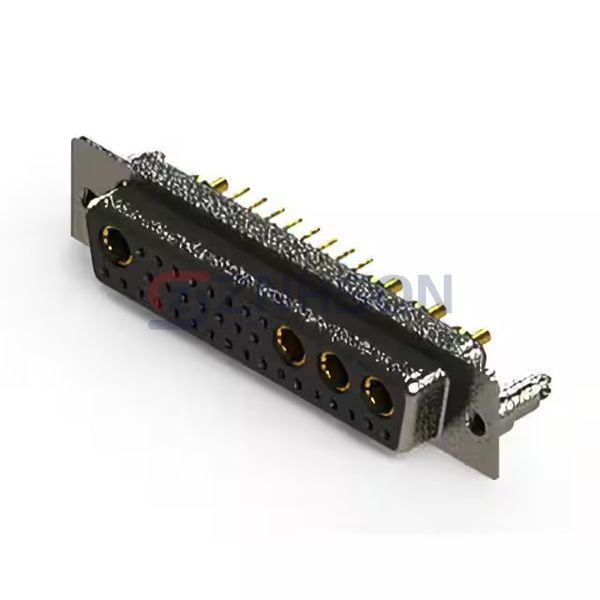

628-36W4624-1N5
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 36POS VERT SLDR
$37.83
Available to order
Reference Price (USD)
1+
$37.83260
500+
$37.454274
1000+
$37.075948
1500+
$36.697622
2000+
$36.319296
2500+
$35.94097
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the EDAC Inc. 628-36W4624-1N5 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 628-36W4624-1N5 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 36 (32 + 4 Power)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 5 (DD, D) - 36W4
- Contact Type: Signal and Power
- Flange Feature: Board Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: -
- Features: Board Lock, Shielded
