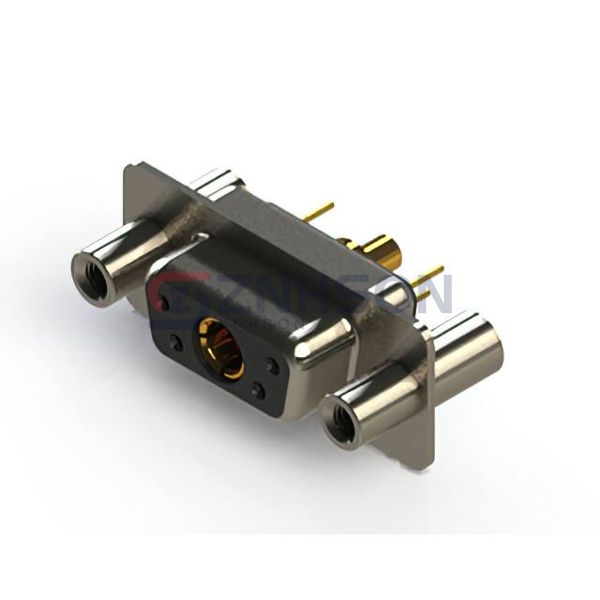

628-5W1-224-2NC
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 5POS VERT SLDR
$5.75
Available to order
Reference Price (USD)
1+
$5.74560
500+
$5.688144
1000+
$5.630688
1500+
$5.573232
2000+
$5.515776
2500+
$5.45832
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 628-5W1-224-2NC redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 628-5W1-224-2NC is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 5 (4 + 1 Power)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 1 (DE, E) - 5W1
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3); Mating Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: -
- Features: Shielded
