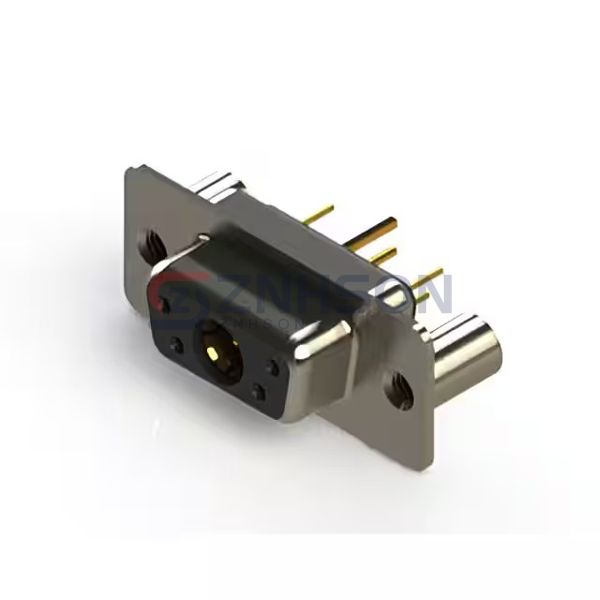

628-5W1-224-7TB
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 5POS VERT SLDR
$6.86
Available to order
Reference Price (USD)
1+
$6.86280
500+
$6.794172
1000+
$6.725544
1500+
$6.656916
2000+
$6.588288
2500+
$6.51966
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-5W1-224-7TB from EDAC Inc. represents the next evolution in D-Sub connector technology within our Connectors division. These high-reliability interconnects feature glass-filled thermoplastic shells for lightweight applications and include EMI/RFI filtering options. With operating temperatures from -55 C to +125 C, the 628-5W1-224-7TB series is perfect for oilfield instrumentation, marine navigation systems, and outdoor telecom infrastructure. The unique dual-lock design ensures positive mating retention even under extreme shock conditions, making these connectors preferred for defense applications and mobile emergency response equipment.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 5 (4 + 1 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 1 (DE, E) - 5W1
- Contact Type: Coax and Signal
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Shielded
