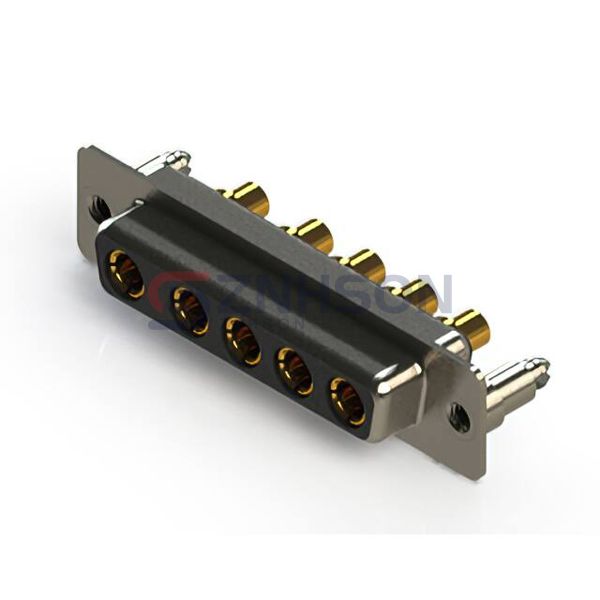

628-5W5-224-4N5
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 5POS VERT SLDR
$9.38
Available to order
Reference Price (USD)
1+
$9.38230
500+
$9.288477
1000+
$9.194654
1500+
$9.100831
2000+
$9.007008
2500+
$8.913185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-5W5-224-4N5 from EDAC Inc. represents the next evolution in D-Sub connector technology within our Connectors division. These high-reliability interconnects feature glass-filled thermoplastic shells for lightweight applications and include EMI/RFI filtering options. With operating temperatures from -55 C to +125 C, the 628-5W5-224-4N5 series is perfect for oilfield instrumentation, marine navigation systems, and outdoor telecom infrastructure. The unique dual-lock design ensures positive mating retention even under extreme shock conditions, making these connectors preferred for defense applications and mobile emergency response equipment.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 5 (Power)
- Number of Rows: 1
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 5W5
- Contact Type: Signal and Power
- Flange Feature: Board Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 40A
- Backset Spacing: -
- Features: Board Lock, Shielded
