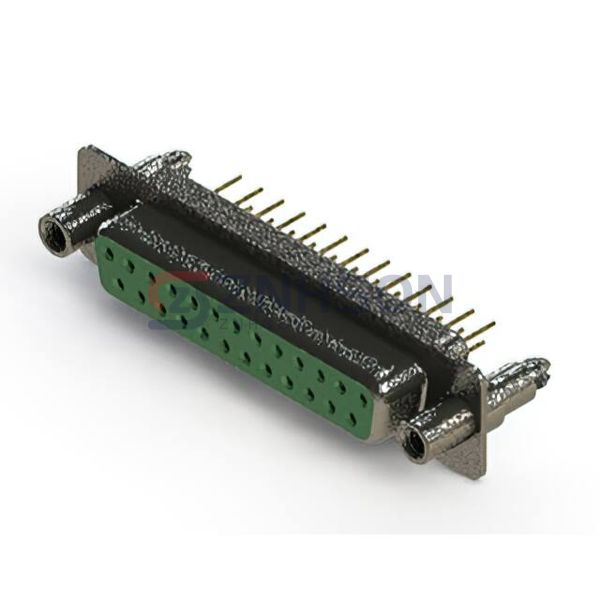

628-M25-321-GN6
EDAC Inc.
EDAC Inc.
628M SERIES VERTICAL D-SUB RECEP
$11.79
Available to order
Reference Price (USD)
1+
$11.78940
500+
$11.671506
1000+
$11.553612
1500+
$11.435718
2000+
$11.317824
2500+
$11.19993
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628-M25-321-GN6 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 628-M25-321-GN6 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: Signal and Power
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A per Contact
- Backset Spacing: -
- Features: Board Lock, Shielded
