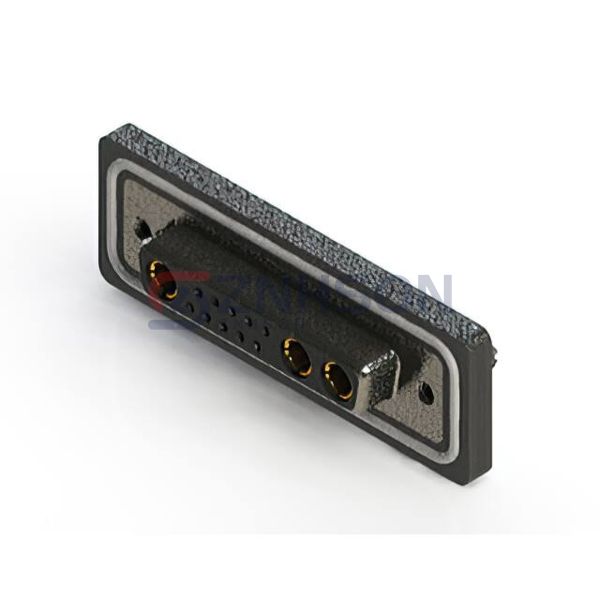

628W13W3324-4N5
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 13P PNL MNT SLDR
$21.51
Available to order
Reference Price (USD)
1+
$21.51290
500+
$21.297771
1000+
$21.082642
1500+
$20.867513
2000+
$20.652384
2500+
$20.437255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 628W13W3324-4N5 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 628W13W3324-4N5 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (10 + 3 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 3 (DB, B) - 13C3, 13W3
- Contact Type: Signal and Power
- Flange Feature: Board Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: -
- Features: Board Lock, Shielded
Related Products
EDAC Inc.
630W3WK3640-2NB
EDAC Inc.
630-5W5-240-5TA
EDAC Inc.
627-2W2-222-4T2
EDAC Inc.
627-13W6624-5T2
EDAC Inc.
629-8W8-240-1NE
EDAC Inc.

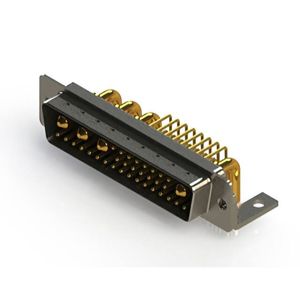

629-36W4640-3N4
Cinch Connectivity Solutions

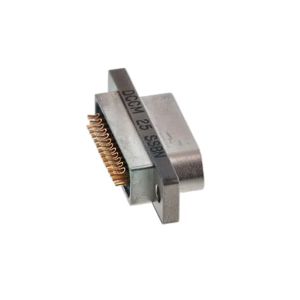

DCCM25SSB
EDAC Inc.

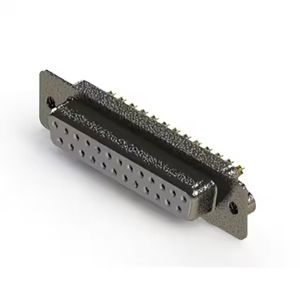

628-M25-222-WT2
EDAC Inc.

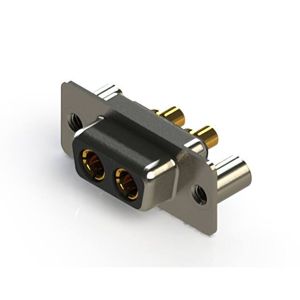

628-2W2-224-3N3
